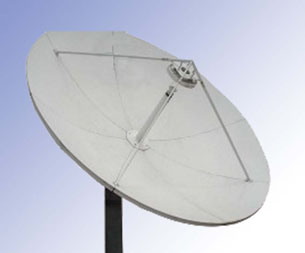

TracStar X240V 2.4 米 x 波段天線
2.4M X-band Antenna is a rugged, reliable antenna system that will
operate in the X-band Antenna System with 7.90 - 8.4GHz Transmit and
7.25 - 7.75GHz Receive. System Includes Reflector, sub-reflector, Az/El
mount, OMT, feed and Supports. This system has high efficiency and
at the same time successfully withstands the effects of the
environment. |
2.4 米 x 波段天線
穿透或非穿透安裝
拉伸成型鋁反射板;
防銹;
出廠前組裝和測試系統(tǒng);
配件立柱熱浸鍍鋅結(jié)構(gòu)鋼
接受客戶定制。
2.4m
X band antenna
Penetrating or
Non-penetrating Mount
Self-aligning,
Stretch-formed aluminum
reflector panel;
Reliable structure and well
in anti-rust;
Assembled and tested feed
system before leaving
factory;
Hot-dip Galvanized
structural steel
Responsive customer service
support.
技術
|
SPECIFICATIONS
|
|
2.4M X-band Antenna System
|
|
Electrical Performance
|
|
Antenna Size
|
RX
|
TX
|
|
Frequency(GHz)
|
Rx: 7.25 -7.75GHz
|
Tx: 7.90 - 8.40GHz
|
|
Antenna Gain at Midband, dBi
|
43.7dBi
|
44.6dBi
|
|
VSWR
|
1.3:1
|
1.3:1
|
|
Axial Ratio
|
1.13dB
|
1.0dB
|
|
Antenna Noise Temperature
10deg Elevation
20deg Elevation
30deg Elevation
|
38K
33K
29K
|
38K
33K
29K
|
|
Port to Port Isolation
|
20dB
|
20dB
|
| Feed Insertion loss (dB) |
LESS THAN 0.3 |
LESS THAN 0.3 |
|
Mechanical Specification
|
|
Antenna Type
|
Offset / Ring focus
|
|
Surface Accuracy(RMS)
|
Less than 0.35
|
|
Mount Type
|
Elevation over Azimuth
|
|
Antenna travel range
Azimuth
Elevation
|
0deg -360deg
5deg -90deg
|
|
Environmental Specification
|
|
Wind loading
Operational
Survival
|
80km/h
200km/h
|
|
Temperature
|
-40Deg.c to 60Deg.c
|
|
Rain
|
13mm per hour
|
|
Solar Radiation
|
360BTU/h/ft2
|
|
|
